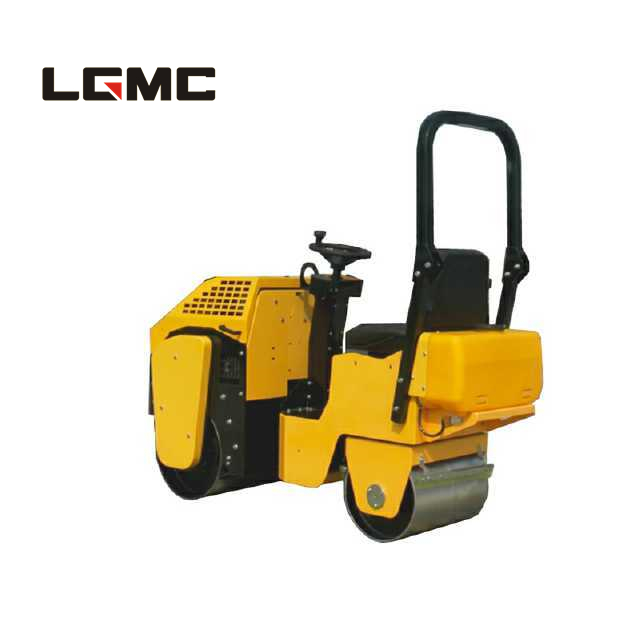

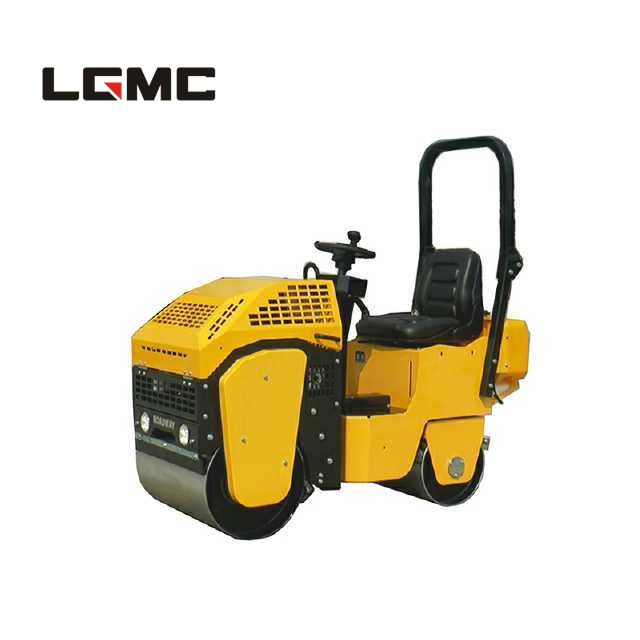

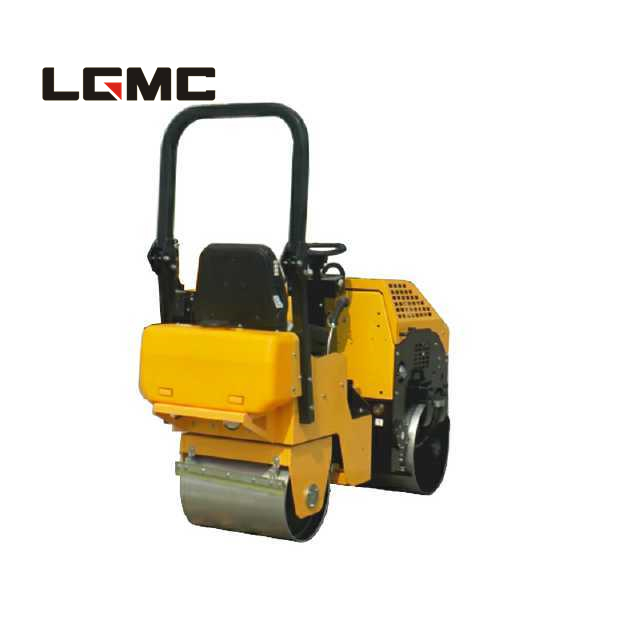

YL42/YL42C
YL42/YL42C
YL42/YL42C
YL42/YL42C
YL42/YL42C

YL42/YL42C

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL42YL42C
行走Run
速度Speed0-4km/h
转向半径Turning radius3800mm
理论爬坡能力Climbing capacity in theory30%
压实Compaction
静线载荷前/后Static load forward/back57/22.5N/cm57/22.5N/cm
名义振幅Nominal amplitude0.5mm
振动频率Vibration frequency70Hz
激振力Exciting force20KN
水箱容积Water tank volume80L
工作Working
驱动Drive液压 Hydraulic drive
振动Vibration机械传动,电磁离合Mechanical drive, electromagnetic clutch
转向Turning手动机械式Hand mechanical type
发动机Engine
型号ModelHONDA, GX390178F
类型TypeGasoline engine, air cooled, 4stroke, OHV, single cylinderDiesel engine, air cooled, 4stroke, vertical type, single cylinder
功率Power13.0hp/3600rpm6.0hp/3600rpm
邮箱容积Fuel tank volume1.1L1.7L
润滑油量Lubricant L313g/kWh280g/kWh
燃油消耗量Fuel consumption6.5L5.5L
尺寸规格Dimension
钢轮宽度Width of steel wheel(Forward and back)700mm
钢轮直径Diameter of steel wheel(Forward and back)500mm
轮距Tread1220mm
总长Total length1840mm
总宽Total width815mm
总高Total height1800mm
包装尺寸Packing size2050x950x1550mm
重量Weight
工作重量Working weight950kg             960kg
