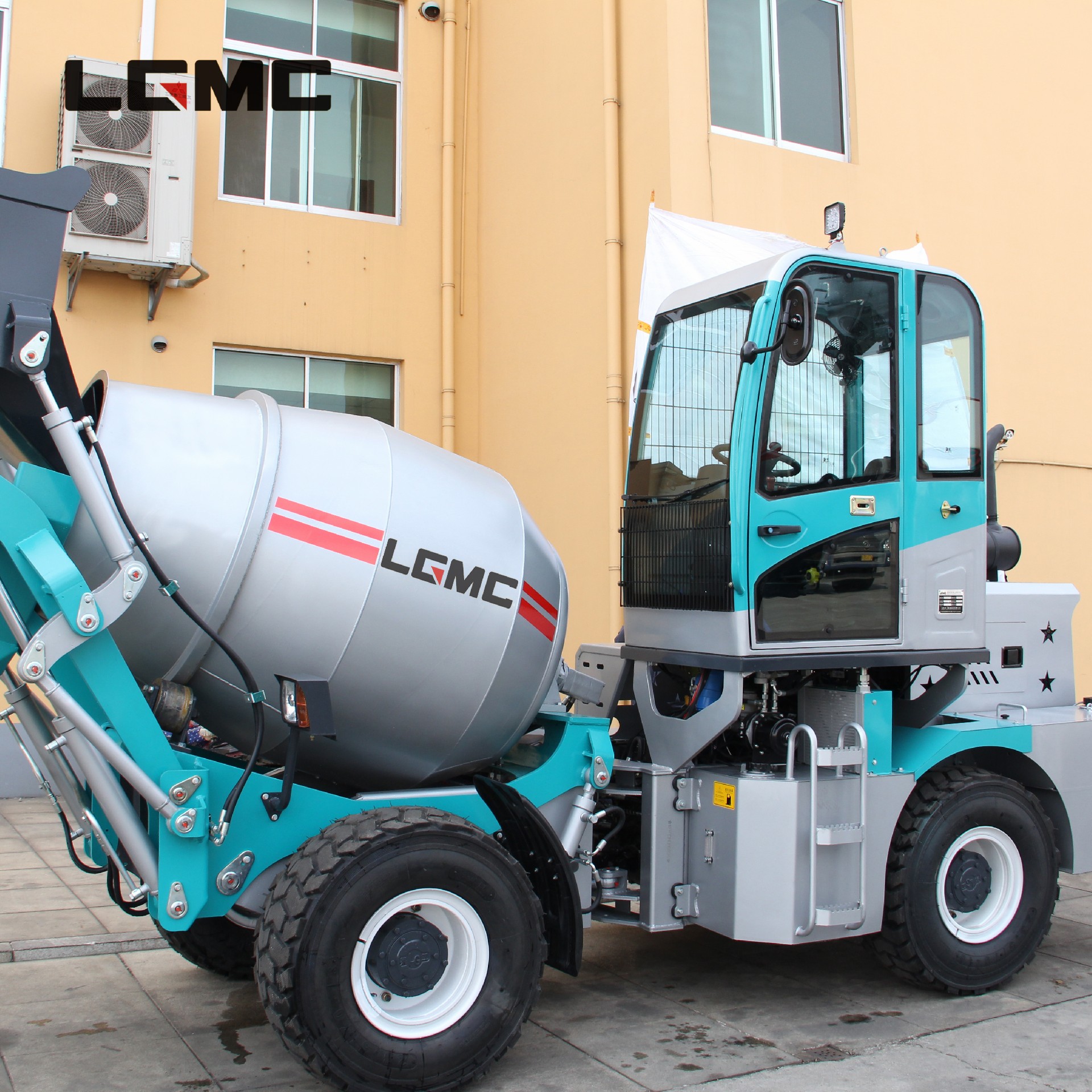

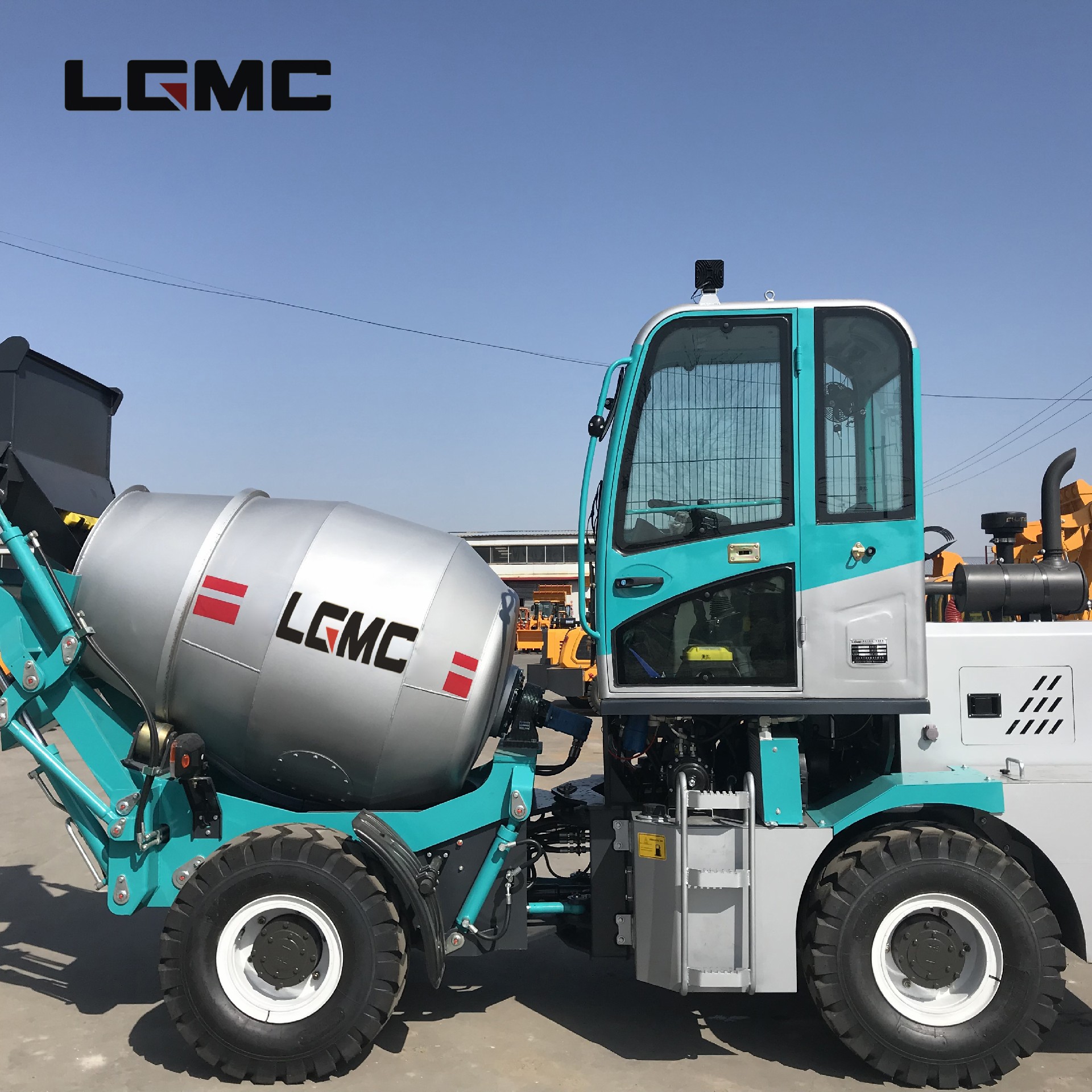

L15

A self-loading concrete mixer is a unique concrete mixing machine that is widely used in the construction industry around the world. Many unique models of self-loading concrete mixers are available in the market, each having its advantages and disadvantages. All types are highway and all-terrain machines that is widely used in the construction of canals, residential, commercial, industrial buildings, and other construction applications.

Features of Self-Loading Concrete Mixer

One of the important features of a self-loading mixer is its easy operation. Because of its self-loading design, it can automatically produce and transport concrete on-site.
Other features of a self-loading concrete mixer are mentioned below.
1. A self-loading concrete mixer is a multi-functional machine that is capable of self-loading all the concrete ingredients, mix, transport, and discharge.
2. Self-loading concrete mixer generally possesses a four-wheel-drive system that gives high traction to help the machine work in very soft clay site conditions.
3. It has a hydraulic-driven drum that offers high rotation that facilitates effective mixing operation. Once the mix is ready the drum can be lifted for fast and effective discharge of concrete.

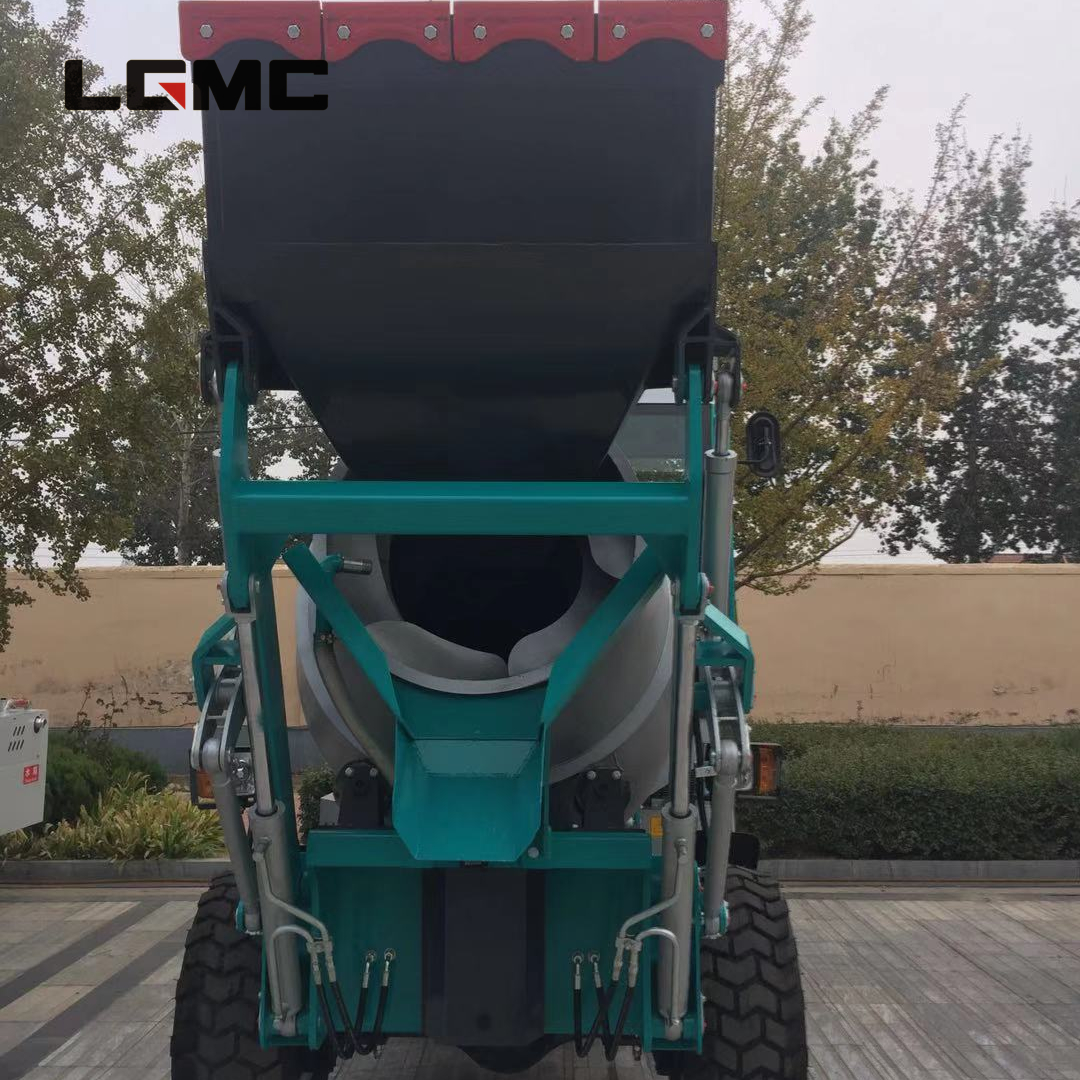

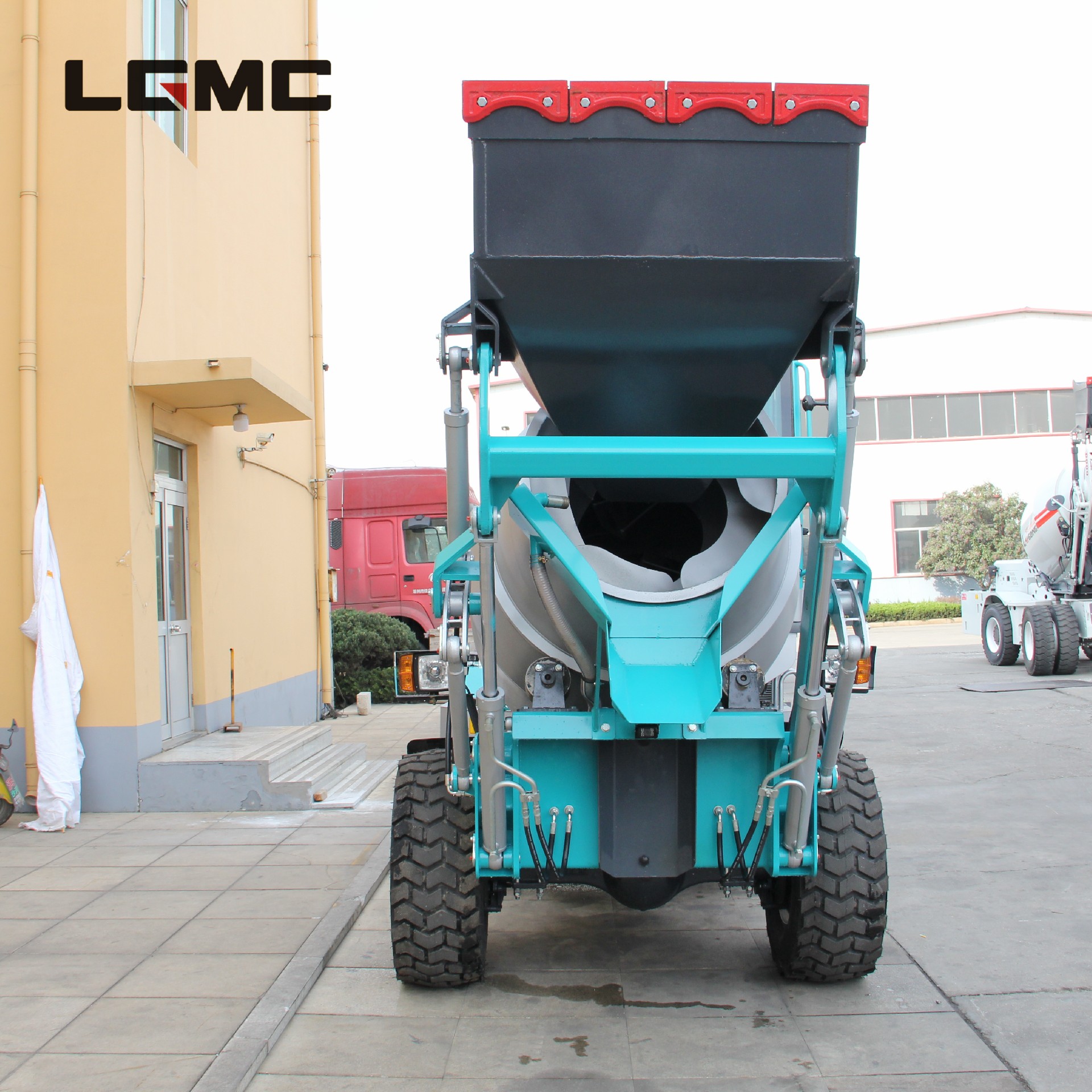

4. The self-loading mixer has a metal bucket that enables the operator to load raw material to the drum.
5. The loading and mixing operations, the speed, and direction of the drum are all controlled from the cabin of the truck
6. A self-loading concrete mixer can be easily loaded in big trucks and transported to any long-distance construction site. This feature makes it suitable for small, narrow, and isolated construction sites.

Overall performance		Unit	Value
产品型号	Product Model		L15
发动机型号	Engine Type		Yunnei490 Turbocharging
发动机功率	Engine power(KW)	KW	58
罐体容积	Drum Capacity(m³)	m³	2
有效容积	Valid output(m³)	m³	1.5
车体长宽高	Overall dimension LengthWidthHeight(mm)	mm	535018002900
轴距	Axle base	mm	2450
前轮距	Front wheel base	mm	1500
后轮距	Rear wheel base	mm	1500
卸载高度	Dumping height	mm	1080
离地最小间隙	Minimum ground clearance(mm)	mm	270
整车重量	Total weight(KGS)	KGS	4500
理论燃油消耗	Fuel consumption (Theoretical)L/H	L/H	5.0-7.0
最大行驶速度	Maximum drive speed	KM/H	25
罐体转速	Tank rotation speed	Turn/minute	16
罐体旋转角度	Tank rotation angle	°	0
驱动桥	Drive Bridge		small hub reductor
变速箱	Gear box		265 splitted
轮胎尺寸（前）	Tire Dimensions (Front)		23.5-16
轮胎尺寸（后)	Tire Dimensions (Rear)		23.5-16
制动距离	Braking distance	mm	1000
发动机油容积	Engine oil capacity	L	12-13
液压油箱容积	Hydraulic oil capacity	L	120
液压油型号	Hydraulic oil type	L	No.46 efficient wearable
燃油箱	Fuel tank	L	120

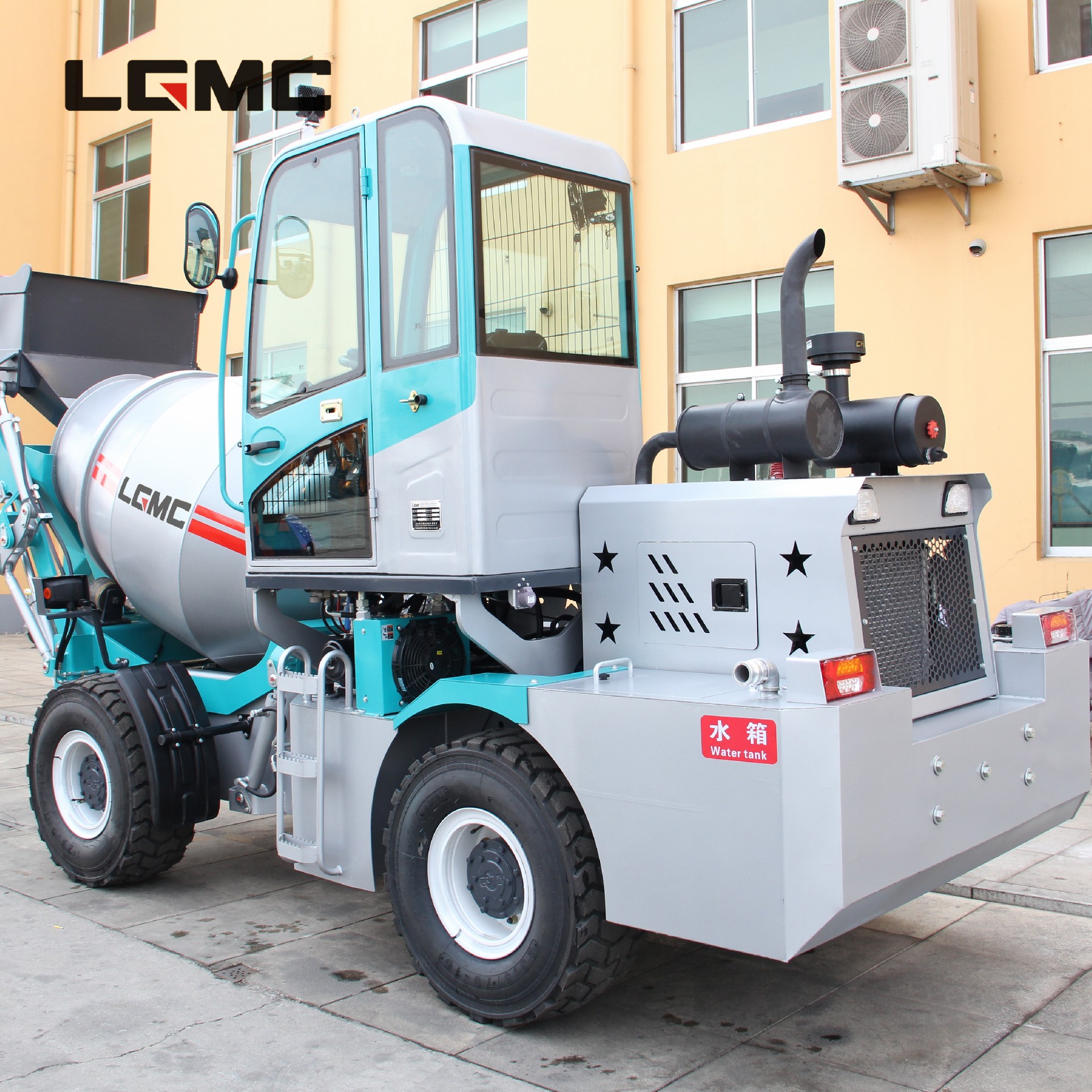

工作水箱	Water tank	L	500
小水泵排量	Small pump displacement	L/MINUTE	120
大水泵排量	Big pump displacement	L/MINUTE	120（sinking pump）
转弯半径	Radius of turning circle
铲斗容积	Bucket capacity	m³	0.4
变速箱油型号/容积	Transmission oil type/capacity	L	No. 8 transmission oil/21-23
车桥齿轮油型号/容积	Axle gear oil type/capacity	L	No. 18 double curve bight/
轮边减速器齿轮油牌号/容积	Hub reduction gear oil type/capacity		No. 18 double curve bight/
双胎轮胎气压	Double tire pressure	Bar	/
单胎轮胎气压	Single tire pressure	Bar	6
气罐压力	Tank pressure	Bar	4.0-8.0
